Solar Decathlon Europe: Techstyle Haus

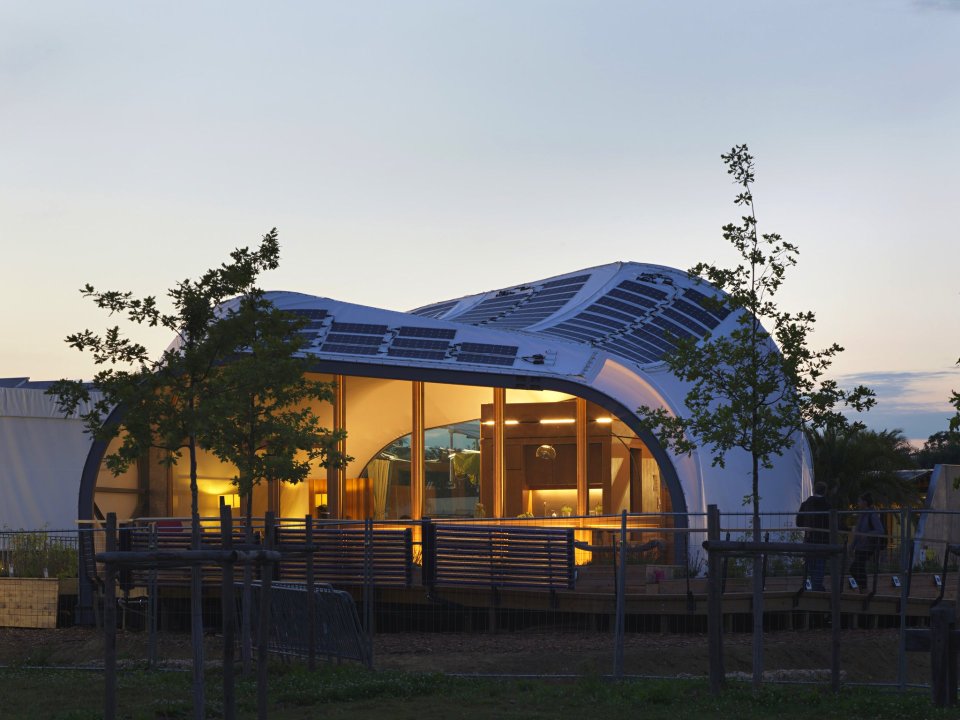

Techstyle Haus was one of the innovative entries in the recently concluded Solar Decathlon Europe 2014. The small house was created by a team of students from the Rhode Island School of Design, Brown University and the University of Applied Sciences Erfurt. Wanting to try something different, the team decided to build a passive house using a textile roof.
The tent-like appearance might give the impression that the roof is thin and flimsy, but it actually consists of several layers including nearly 12 inches of mineral wool insulation. The outer covering is a Teflon-coated fiberglass membrane typically used for sports stadiums and designed to resist high winds.
The thick blanket of insulation along with triple-paned windows, air-tight construction, and design elements such as the generous overhang shading the south windows all work together to reduce the home’s heating and cooling requirements by 90 percent compared to typical construction, meeting the Passivhaus standard. Topping the roof are a high-efficiency photovoltaic system and solar water heater, which together collect more energy than the house uses.

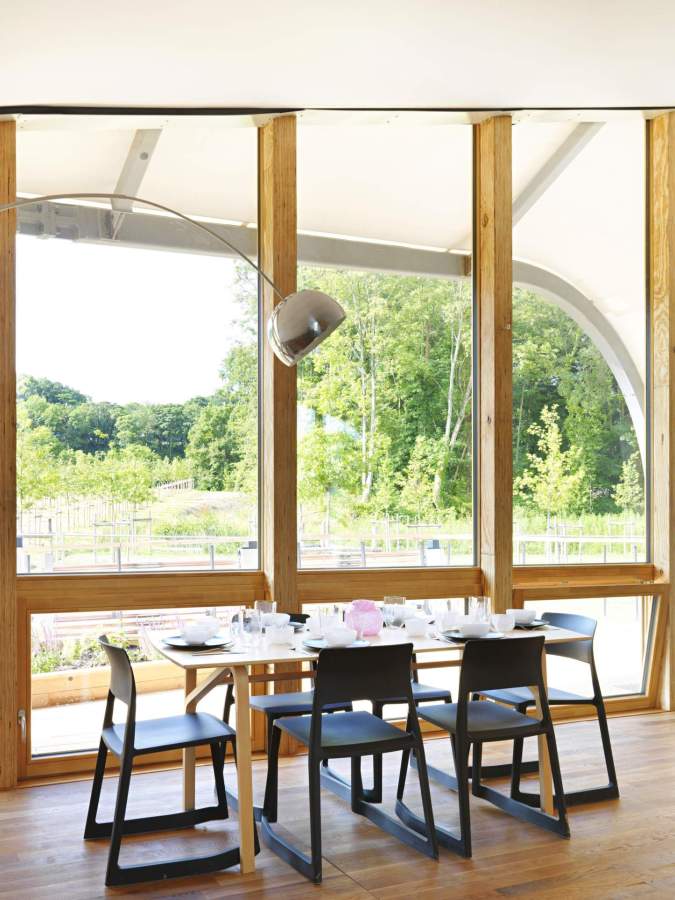

The roof is stretched over five curved steel ribs that span the house without any intermediate supporting posts or walls. That left the 76.7 m2 (825 ft2) interior wide open, providing flexibility in how the space is used. The Techstyle Haus team opted for an open one-bedroom plus loft floor plan, concentrating the mechanical components into a technical core containing the kitchen, bathroom and laundry. The gently curved surfaces give the interior an attractive organic appearance.
Click a thumbnail to view a larger photo, then click on the photo to advance to the next one.
Photographs by Kristen Pelou, courtesy of the Techstyle Haus team, and by Valeria Anzolin and Jason Flakes, courtesy of Solar Decathlon Europe.
Text copyright 2014 SmallHouseBliss. All Rights Reserved.
Love this! Would be interested to see what the snow load rating is for the roof and the cost for building this in the US.
Reblogged this on Design Notes for a Chelsea Dwelling and commented:
An undulating roof design in the Solar Decathlon.
Reblogged this on The Petrofka House and commented:
I really like this idea. A comment is posted at the end asking about snow. Would be interesting to hear if this would work in a Canadian winter.
